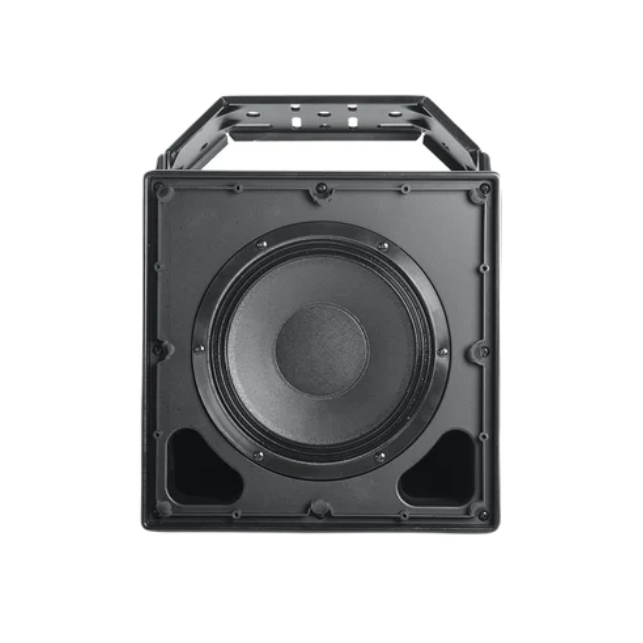

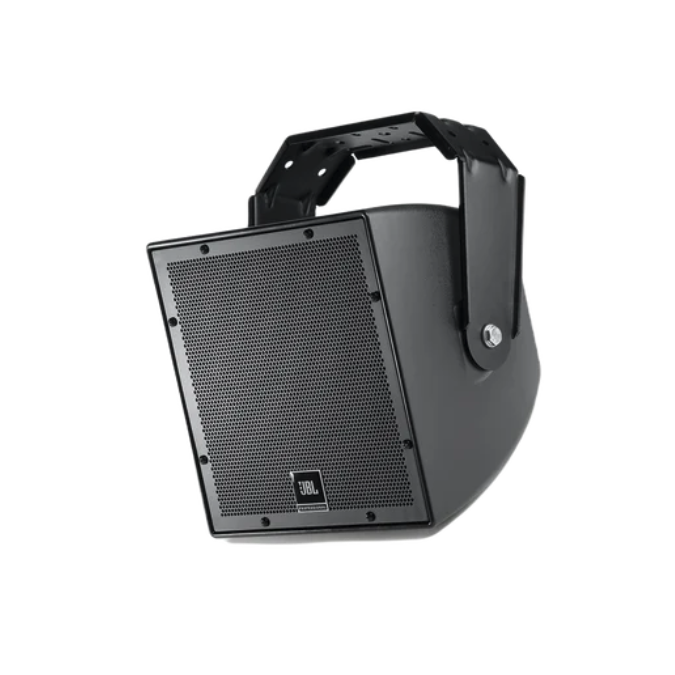

The AWC82 is a compact, coaxial-driver, 2-way, highly weather-resistant full-range loudspeaker system which is ideal for speech and music in a wide variety of applications, including sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music/paging systems, swimming pools, and a wide variety of other outdoor or indoor venue types.
Specification
Details
Frequency Range (-10 dB)
80 Hz–20 kHz
Frequency Response (±3 dB)
100 Hz–20 kHz
Coverage Pattern
120° × 120°
Directivity Factor (Q)
8.1 (1 kHz–16 kHz)
Directivity Index (DI)
8.4 dB (1 kHz–16 kHz)
System Power Rating
250W (2 hours); 200W (100 hours)
Sensitivity
94 dB average (2.83V @ 1m; 100 Hz–20 kHz)
Maximum SPL (1m)
Direct 8Ω: 118 dB continuous / 124 dB peak; 200W tap: 117 dB
Nominal Impedance
8Ω
Crossover Network
1.8 kHz; 3rd-order (18 dB/octave) high-pass with HF conjugate, plus 2nd-order low-pass to LF
